Precision Custom Threading

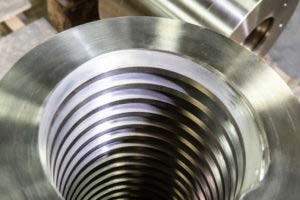

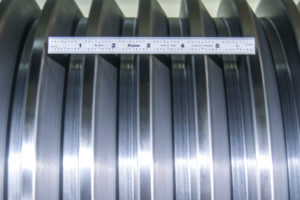

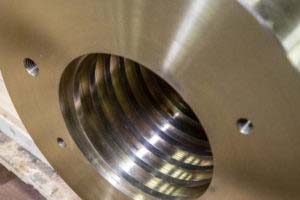

Jerpbak-Bayless provides superior custom threading including ACME, buttress, API, square, trapezoidal, all forms of V-threads and of course standard 60-degree threads both internal and external.

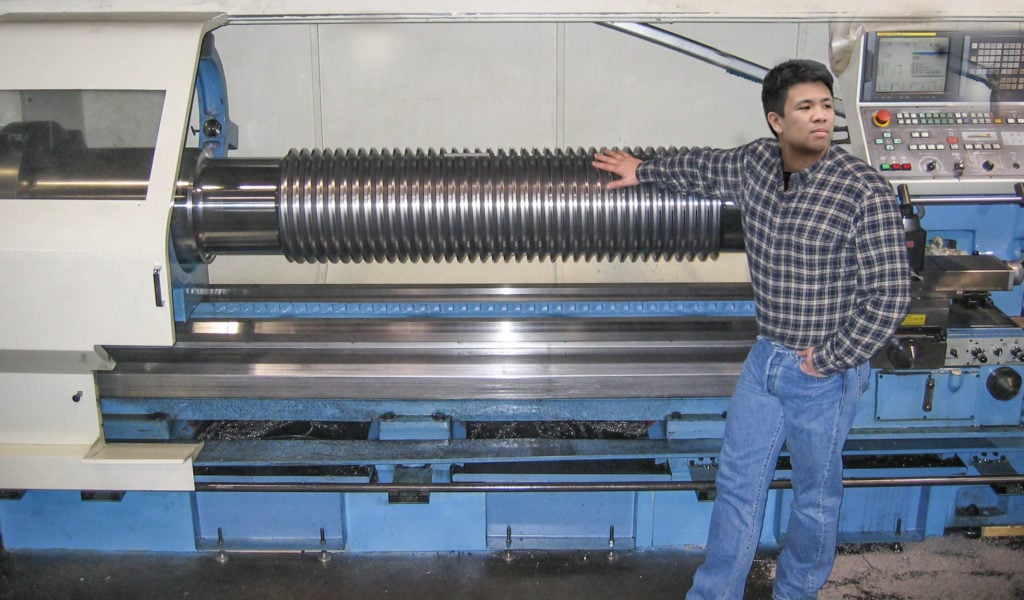

Our equipment inventory includes a variety of thread cutting machines, many of which have been retro-fitted to cut much more advanced thread forms than previously possible. Our largest thread milling machine is capable of cutting threads 228″ long in one setup. For parts with 6″ diameter or less, we can work with essentially unlimited length. For larger diameter requirements, we have specially adapted CNC lathes that can handle most standard and special thread forms up to a 40″ diameter and a 200″ part length.

With our portable CMM, we can inspect many aspects of your custom threads right in the machine, holding +/-.0005″ precision tolerance and .0003″ concentricity. Jerpbak-Bayless can also perform pre and post-machining services on your threaded or non-threaded parts. Learn more about our Specialty Machining and secondary operations.

Applications

We utilize our advanced CNC turning, milling and grinding capabilities to create a variety of threaded parts such as:

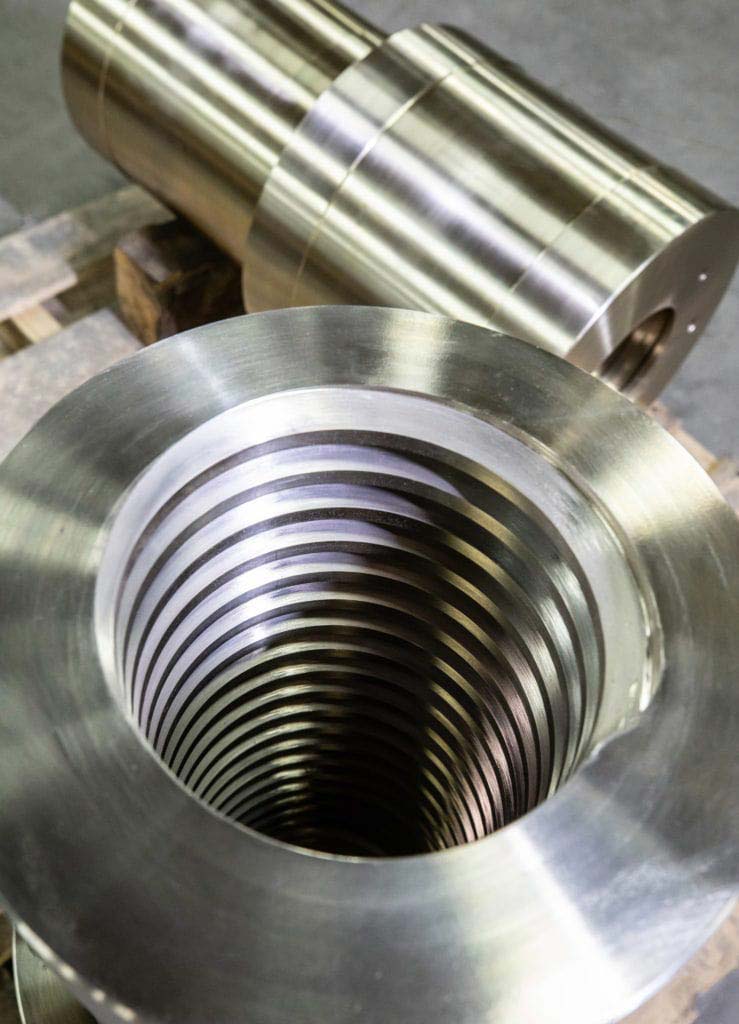

  • Screw and nut actuators

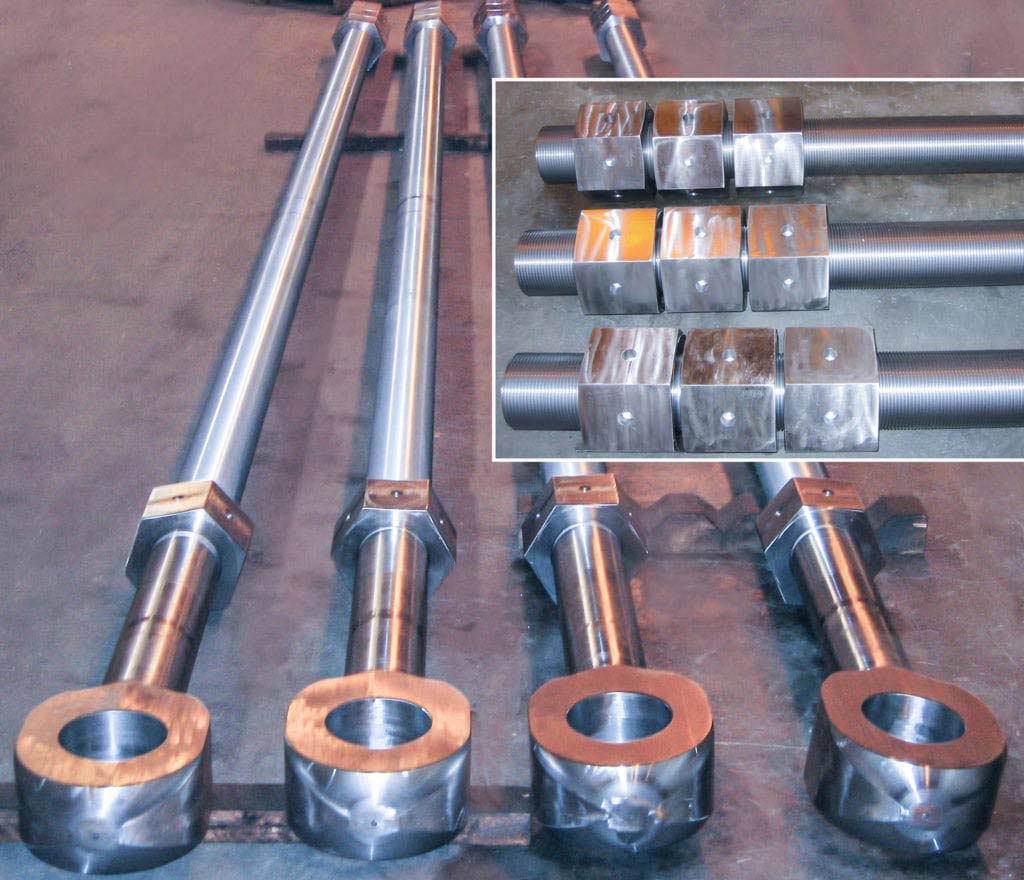

  • Jack and valve screws
  • Levelwind and reversing screws

Contact Jerpbak-Bayless to learn more about our custom threading capabilities. Request a quote today.

Custom Threading Portfolio

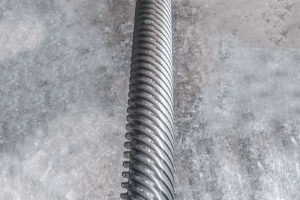

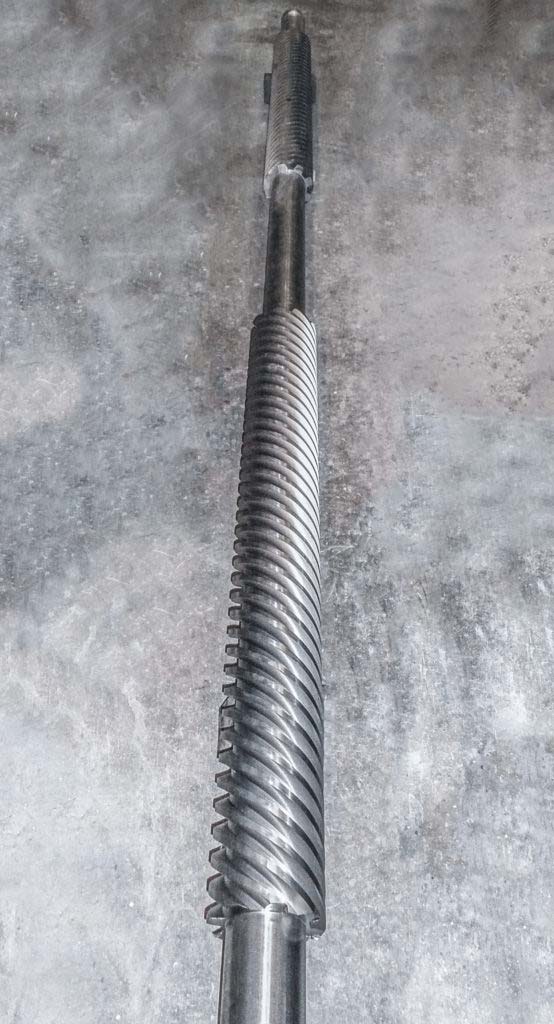

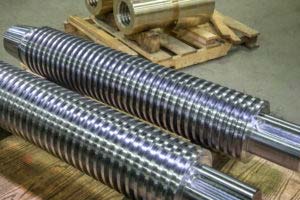

ACME Lead Screw



Specifications

Threading Processes

Thread Grinding
Thread Milling
Thread Cutting

Production Volume

1 to 1000 pieces

Part Dimensions Available

Unlimited Part Lengths

Outer Diameters Available

1.5″ to 34″, usual range

Roundness

Up to .0001″

Concentricity

Up to .0003″

Tolerance Available

Usually up to +/-.0005″
No restrictions

LEARN MORE

We are proud to work with our OEM customers to provide them with a variety of highly-specialized component parts, allowing them to maximize value to their customers.
