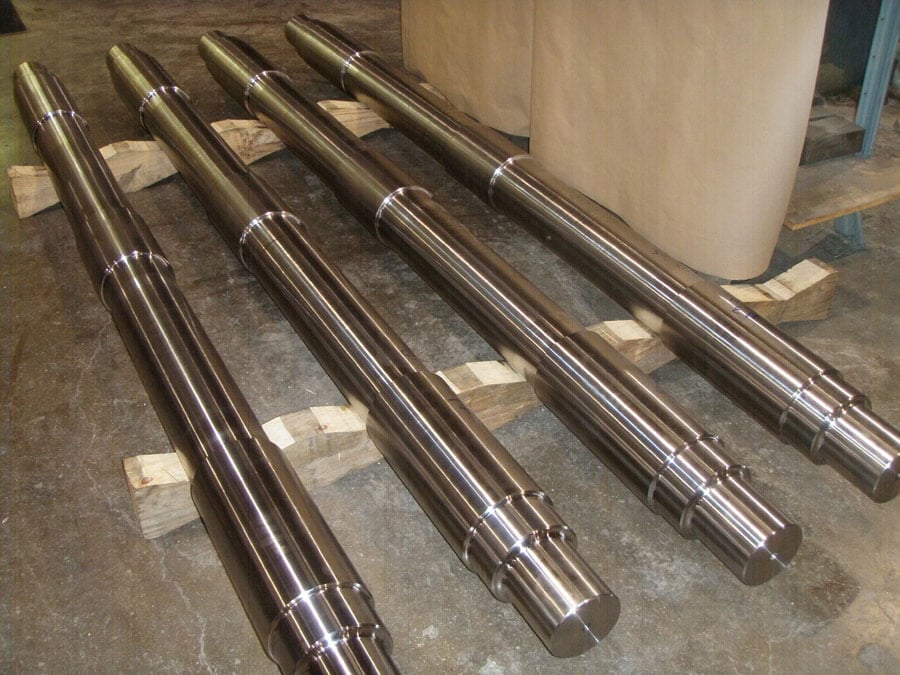

Long Shaft Machining Services

If you require long shaft machining services, Jerpbak-Bayless has the precision capabilities you need. Our capabilities include 5-axis CNC turning of long shafts for any length, along with precision capabilities with tolerances as high as +/-.0005″. With over 70 years of experience in critical component machining, we can provide our customers with top-tier services that yield consistent results.

Long Shaft Machining Processes

Jerpbak-Bayless’ capabilities include several processes that long shaft manufacturing requires. These include:

CNC Turning

Our 5-axis CNC turning equipment enables us to machine several features simultaneously. Through the use of additional axes of movement, our customers benefit from tighter tolerances from feature to feature, lowering machining costs for complex components. This allows us to complete finished parts using rough stock with fewer steps involved. Additionally, you can benefit from a much lower risk of inconsistencies with more efficient processes.

Based on your CNC turning needs, we offer the following specifications:

  • Unlimited shaft length
  • Tolerances up to +/-.0005″
  • Outside diameters up to 34″, with the ability to machine even larger for certain components
  • 5-axis CNC turning machines that feature double chuck, high-pressure cooling, and steady rest

CNC Milling

Jerpbak-Bayless also has CNC milling capabilities that include:

  • 5-axis machining capabilities
  • Work envelopes anywhere between 20x20x40″ and 24x36x200″
  • Precision tolerances of up to +/-.0005″
  • Horizontal and vertical CNC milling equipment

Long Shaft Threading

If you require long shaft threading, we can also provide this service. We can provide buttress, trapezoidal, ACME, square, API, a wide variety of V-threads, and standard internal and external 60° threads.

Applications

Based on our customers’ individual project specifications, we can machine a variety of long shafts. These include, but are not limited to:

  • Pump Shafts
  • Drive Shafts
  • Axle Shafts
  • Spline Shafts

We machine long shafts for the following industries:

  • Mining
  • Oil & Gas
  • Construction & Heavy Equipment
  • Food Processing
  • Chemical Processing
  • Plastics
  • Defense

Regardless of your industry or application, we can provide the long shaft machining services you need to help optimize both efficiency and cost-effectiveness.

Advantages of Working with Jerpbak-Bayless

When you work with the experts at Jerpbak-Bayless, you’ll benefit from a company that focuses on multiple disciplines to give you everything you need for a given application. As a full-service project manager, we can provide machining for a variety of individual parts along with complete part families.

Our 43,000 square-foot facility features 5-ton crane capacity, enabling us to provide a wide array of machining services such as CNC turning, CNC milling, long shaft threading, and long shaft straightening. We can meet tight tolerances on OD grinding machines with parts as long as 233″.

The advantages of working with Jerpbak-Bayless make us one of the most dependable partners for our customers, regardless of their machining requirements.

Connect with Jerpbak-Bayless for Long Shaft Machining Services

At Jerpbak-Bayless, our wide range of capabilities enables us to meet our customers’ specific needs, whether they require CNC turning, CNC milling, or long shaft threading. We can work with a wide variety of shafts and specifications, minimizing the risk of inconsistencies while helping you cut down on machining costs.

To learn more about our services, you can visit our CNC turning or specialty machining pages for additional information. You can also request a quote for our services to get started on your next project.

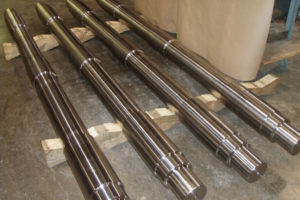

Long Shaft Machining Portfolio

Spline Drive Shaft

Long Shaft Machining Specifications

Production Processes

Cylindrical Grinding

CNC Horizontal, vertical and 5 axis Milling

CNC turning

Production Volume

1 to 1000 pieces

Part Dimensions Available

Up to 9.50” part diameter, CNC turned part lengths can be unlimited

Cylindrical grinding up to 200” (5 meters) in length

5 Axis milling up to 200” (5 meters) in length, longer options upon drawing review

Outer Diameters Available

1.5″ to 34″, usual range

Roundness

Up to .0002″

Concentricity

Up to .0003″

Tolerance Available

Usually up to +/-.0005″
No restrictions
